​Douk Audio Vacuum Tube Preamp: Headphone Amp with VU Meter, 4-Way RCA

The Douk Audio Vacuum Tube Preamp combines an analog source switcher, a dedicated headphone amplifier, and a tube preamplification stage into a single desktop unit. It solves the clutter of managing multiple playback devices by letting you route up to four RCA sources, such as CD players, DACs, streamers, or Blu-ray players, directly into your stereo receiver or powered speakers without unplugging cords.

Audio performance relies on an isolated power section with full metal shielding and a 180V optimized tube circuit, delivering a signal-to-noise ratio of at least 107dB and total harmonic distortion of 0.06% or lower. The dedicated headphone output provides up to 500mW of power, making it capable of driving headphones ranging from 16 to 600 ohms, including models like the Sennheiser HD600 or Beyerdynamic DT 990 Pro. Users can tailor their sound profile using onboard bass and treble tone knobs that adjust up to plus or minus 6dB.

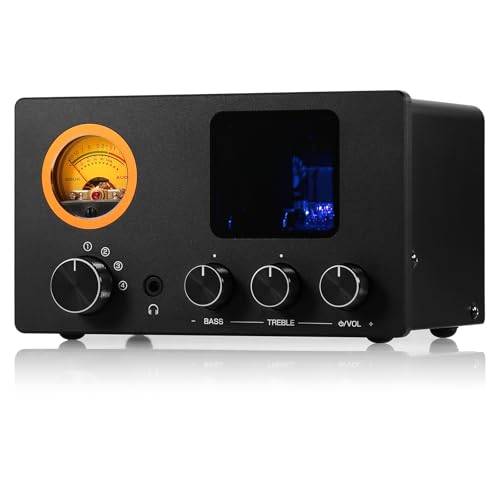

For visual feedback and aesthetics, the front panel features a dual-channel analog VU meter alongside customizable RGB backlighting for the vacuum tubes. Enthusiasts who like to experiment with audio components will appreciate the pluggable sockets. The stock NE5532 op-amp can be swapped with other dual op-amps like the 2134, 2604, 2068, or muse02, while the default ECC83 tube can be replaced with alternatives such as the 12AX7-S, 12AX7B, or 7025.

As for trade-offs, the unit focuses strictly on analog routing through RCA connections, so digital sources will require an external DAC before plugging in. Additionally, while the listing details component compatibility for op-amps and tubes, it does not specify physical measurements or housing weight for tight desk setups.

Verdict: This tube preamp is a well-rounded choice for listeners who want to consolidate up to four analog sources while powering demanding headphones. It offers great flexibility for anyone interested in fine-tuning sound through tone controls and swappable components.

• Headphone Output Power: Up to 500mW
• Headphone Impedance Compatibility: 16 to 600 ohms
• Signal-to-Noise Ratio (SNR): ≥107dB
• Total Harmonic Distortion (THD): ≤0.06%
• Tone Adjustment Range: ±6dB (Bass and Treble)
• Default Tube: ECC83 (swappable with 12AX7-S, 12AX7B, 7025)
• Default Op-Amp: NE5532 (swappable with 2134, 2604, 2068, muse02)
• Circuit Operating Voltage: 180V optimized circuit
• Input/Output Connectivity: 4-Way RCA inputs, RCA output, Headphone jack

A great fit if you:

• Need to connect up to four separate analog audio sources to one amplifier or speaker system.
• Own high-impedance headphones up to 600 ohms that require dedicated amplification power.
• Want the flexibility to swap op-amps and tubes to test different sonic characteristics.
• Enjoy analog VU meters and tube aesthetics with adjustable RGB lighting.

Consider something else if you:

• Need direct digital inputs like optical, coaxial, or USB without using a separate DAC.
• Prefer completely solid-state audio equipment with no vacuum tube circuitry.

What types of headphones can this amplifier drive?
The amplifier delivers up to 500mW of output power and supports headphones with impedance ratings between 16 and 600 ohms, including models such as the Sennheiser HD600/650 and Beyerdynamic DT 990 Pro.

Which replacement tubes and op-amps are compatible?
The unit uses pluggable sockets compatible with ECC83, PSVANE 12AX7-S, Shuguang 12AX7B, and 7025 vacuum tubes, as well as NE5532, 2134, 2604, 2068, and muse02 dual op-amps.

How many audio inputs does the preamp support?
It features a 4-way RCA selector that allows you to connect up to four separate audio sources, such as CD players, streamers, and DACs, without changing cables.
