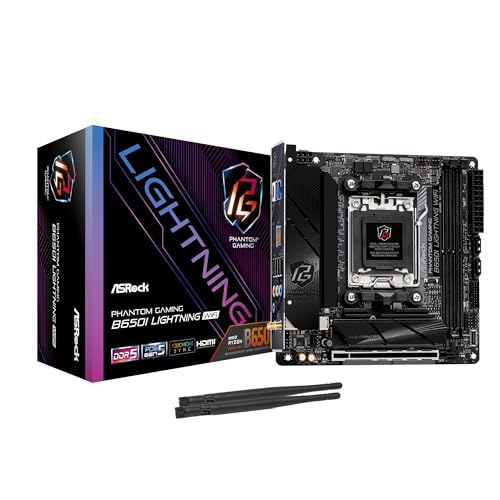

ASRock B650I Lightning WiFi AMD AM5 Mini-ITX Motherboard, Supports AMD Ryzen 9000/8000/7000

The ASRock B650I Lightning WiFi is a compact Mini-ITX motherboard built for builders creating small form factor AMD desktop rigs. It accommodates AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, making it a viable foundation for modern compact systems where desk space is at a premium.

Despite its small 170mm by 170mm footprint, the board packs significant performance hardware. Power delivery relies on an 8+2+1 phase design with Dr.MOS components to keep processor power steady. For system memory, two DDR5 DIMM slots allow dual-channel memory configurations capable of overclocked speeds reaching 7200+ (OC). Storage is also well covered, offering a primary Blazing M.2 PCIe 5.0 x4 slot alongside a secondary PCIe 4.0 M.2 slot and two SATA3 connectors.

Networking and peripheral connectivity cover modern wireless and wired standards. It includes an Intel WiFi 6E module, Phantom Gaming 2.5G LAN, and several USB 3.2 Gen2 ports, featuring both front and rear USB Type-C connections. Integrated Realtek ALC897 7.1-channel HD audio paired with Nahimic Audio handles onboard sound. For building and maintenance, ASRock includes a physical BIOS Flashback function and an Auto Driver Installer utility to streamline software configuration.

Because it uses the Mini-ITX form factor, physical expandability is inherently restricted. You are limited to two DDR5 slots and two SATA3 drives, which may constrain users who require vast arrays of legacy storage drives or more than two memory modules.

Verdict: The ASRock B650I Lightning WiFi is a well-rounded option for anyone assembling a small form factor AMD AM5 PC. It delivers essential modern connectivity, including PCIe 5.0 M.2 storage, WiFi 6E, and fast DDR5 support, in an ultra-compact footprint.

• Form Factor: Mini-ITX (170mm x 170mm)
• CPU Socket: AMD AM5 (Ryzen 9000, 8000, 7000 Series)
• Power Phase: 8+2+1 Phase with Dr.MOS
• Memory Support: Dual DDR5 DIMM slots, up to 7200+ (OC), Dual-Channel
• M.2 Storage: 1x PCIe 5.0 x4, 1x PCIe 4.0
• SATA Ports: 2x SATA3
• Networking: Phantom Gaming 2.5G LAN, Intel WiFi 6E
• Audio Codec: Realtek ALC897 7.1 CH HD Audio with Nahimic Audio

A great fit if you:

• Are building a space-constrained, small form factor PC that requires a Mini-ITX board.
• Plan to use an AMD Ryzen 7000, 8000, or 9000 series desktop processor.
• Want high-speed solid-state storage via a PCIe 5.0 NVMe M.2 slot.
• Need fast wireless networking out of the box with built-in Intel WiFi 6E.

Consider something else if you:

• Require more than two DDR5 memory slots for your build.
• Need to connect more than two traditional SATA3 drives.

Which AMD processors are compatible with this motherboard?
It supports AMD Ryzen 9000, 8000, and 7000 Series Processors on the AM5 platform.

What type of storage drives can I install?
The board provides two M.2 slots (one PCIe 5.0 x4 and one PCIe 4.0) along with two SATA3 ports for traditional drives.

What network options are integrated on the board?
It comes with Phantom Gaming 2.5G wired LAN and an Intel WiFi 6E wireless module.

Does this board support front-panel USB Type-C?
Yes, it includes multiple USB 3.2 Gen2 ports with support for both front and rear Type-C connections.
