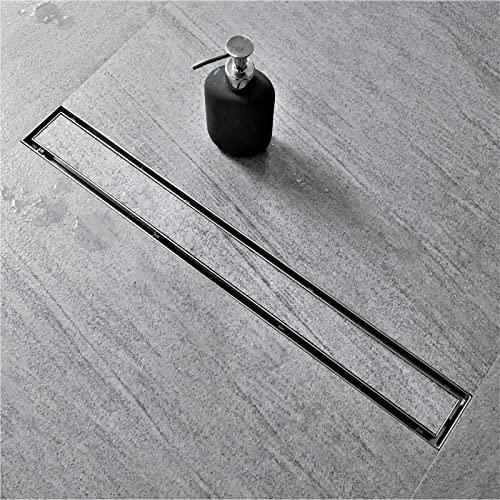

Neodrain 36-Inch Linear Shower Drain-Brushed,with Tile Insert Grate

The Neodrain 36-Inch Linear Shower Drain provides a sleek, modern drainage solution for walk-in showers and bathroom remodels. By utilizing a tile-in grate design, it allows you to place cut floor tile directly into the top cover. This creates a low-profile, integrated look that blends directly into your shower floor while handling runoff efficiently.

Crafted from AISI 304 stainless steel with a brushed finish, the channel is built with specialized production techniques to resist rust and corrosion over time. Inside, a shallow V-profile slope directs water toward the 2-inch central outlet, virtually eliminating standing water in the trough. Without the filter mesh installed, it can achieve a high displacement rate averaging 42.5 liters per minute, preventing puddling during heavy water flow.

Installation is supported by adjustable leveling feet that help stabilize the channel on uneven subfloors, along with a threaded adapter and rubber ring to adjust the overall height. Maintenance is straightforward: using the included lifting hook, you can pull up the grate from either side to empty the removable filter strainer, which catches hair and larger debris before they reach your plumbing pipes.

Keep in mind that the required 2-inch drain base is not included in the box and must be sourced separately in PVC or ABS. Additionally, the unit is not compatible with Schluter Kerdi shower systems, and using the mesh strainer will slightly reduce maximum flow capacity compared to an open drain.

Verdict: The Neodrain 36-Inch Linear Drain is an excellent option for homeowners and renovators seeking a clean, tile-matched look with solid stainless steel durability. As long as you are using standard US No-Hub connections and a compatible drain base, it delivers efficient water clearance and simple ongoing care.

• Length: 36 inches
• Width: 2.75 inches
• Outlet Diameter: 2 inches OD
• Material: AISI 304 Stainless Steel
• Finish: Brushed Nickel
• Drainage Rate: Average 42.5 L/min (without filter mesh)
• Certifications: cUPC
• Coupling Compatibility: US No-Hub

A great fit if you:

• Want a minimalist shower floor where the drain blends in with custom-cut tile
• Need a high-capacity drain with a sloped channel to prevent standing water
• Are building or remodeling on uneven subfloors that require adjustable leveling feet
• Want a removable hair strainer that lifts out easily with an included tool

Consider something else if you:

• Are installing a Schluter Kerdi shower kit system
• Prefer an all-in-one package that includes the rough-in drain base flange

Is the shower drain base included with this unit?
No, the 2-inch drain base is not included and must be purchased separately in either PVC or ABS.

Can I use this linear drain with a Schluter Kerdi system?
No, this drain is explicitly not compatible with the Schluter Kerdi shower kit.

How do you clean out hair and debris?
Use the provided lifting hook to lift the tile grate from either side, then pull out the internal filter strainer basket to clean it.

What is the water flow capacity?
The drain achieves an average flow displacement of 42.5 liters per minute when used without the filter mesh.
