Solar Panel Disconnect Switch, 1000V 30A 2 Poles PV Circuit Breaker
Disclosure: We may earn a commission when you buy through links on this page, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Learn more
Highlights
- IP65 CIRCUIT BREAKER DIN RAIL BOX: Solar panel quick-connect switch – male and female integrated design, plug and play, no need to distinguish terminals. solar panel disconnect switch Made with high-quality materials and a thickened copper coil for superior conductivity. Widened operating handle for easier switching. Transparent cover provides clear visibility of device status. 30A solar panel disconnect switch Built-in waterproof sealing silicone ring, IP65 protection rating, fearless of outdoor use
- OVERVOLTAGE AND OVERLOAD PROTECTION: The solar DC disconnect switch, while providing convenient on/off control, integrates overvoltage protection, overload protection, and lightning protection, 1000v solar disconnect switch aiming to address common electrical risks in outdoor photovoltaic systems. Its integrated design provides a fundamental safety protection approach for photovoltaic systems
- EASY INSTALLATION: Designed for installation between the solar panel and inverter, this solar DC disconnect enables faster, safer setup with plug-and-play convenience. The solar circuit breaker is easy to assemble and disassemble—just connect via two waterproof connectors on the top and bottom. pv disconnect switch Pre-drilled rear holes and an internal 35mm guide rail offer flexible mounting
- WIDELY APPLICABLE: solar breaker box Residential rooftop photovoltaic systems, off-grid photovoltaic systems, photovoltaic water pumps/agricultural irrigation systems, solar street lights/monitoring systems, air conditioner outdoor units, advertising light boxes, charging piles, access control systems, home energy storage battery cabinets, and mobile power supplies

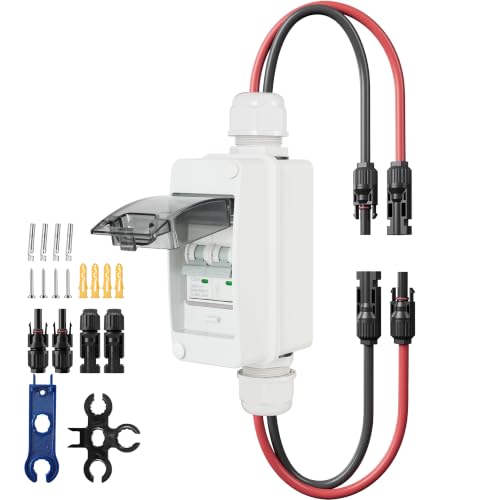

- EXCELLENT AFTER-SALES SERVICE: If you experience any issues with the product upon receipt, please feel to contact our customer support team—we're here to provide you with excellent service. You can choose our circuit breakers with confidence for all your electrical protection needs.Package includes:1x 30A 1000V 2P DC disconnect switch circuit breaker, 4x screws, 4x terminals, 2x solar connectors, 2x spanner wrenches
Why You'll Love It
- Shuts off DC power safely with integrated overvoltage, overload, and lightning protection
- Withstands outdoor weather conditions thanks to an IP65 housing and silicone sealing ring
- Provides quick status checks through a clear cover and a widened operating switch handle
- Speeds up setup using plug-and-play connectors, pre-drilled rear holes, and an internal 35mm rail
- Delivers dependable electrical conductivity using an internal thickened copper coil build
Pros
- +IP65 waterproof rating for outdoor mounting
- +Integrated lightning and overvoltage defense
- +Transparent window for quick status checks
- +Includes connectors, terminals, and spanner wrenches
- +Internal 35mm guide rail simplifies installation
Cons
- -Limited to 30A and 1000V maximum ratings
- -Two-pole configuration only
- -Requires manual wire assembly with included hardware
Detailed Review
The Sezbaifles Solar Panel Disconnect Switch is an enclosed 2-pole DC circuit breaker designed to manage and protect photovoltaic wiring between solar panels and inverters. It serves system owners who need an accessible manual shut-off along with safety mechanisms to handle electrical faults in outdoor solar setups.
Built inside an IP65-rated DIN rail box, this unit relies on a waterproof silicone sealing ring to guard internal components against outdoor elements. Inside, a thickened copper coil promotes solid conductivity. The box features a transparent cover so you can view the breaker position without opening the enclosure, while the widened handle makes switching the circuit on or off straightforward.
Protection features include built-in overvoltage, overload, and lightning safeguards rated for systems up to 1000V and 30A. Installation is streamlined with an integrated male and female plug-and-play connector design, pre-drilled rear mounting holes, and an internal 35mm guide rail. It comes with mounting screws, terminals, solar connectors, and spanner wrenches to complete the setup.
As a trade-off, this unit is built strictly for circuits within its 30A and 1000V 2-pole thresholds, so it will not accommodate larger commercial arrays requiring higher amperage. Additionally, while connectors and wrenches are in the box, the product data does not list specific wire gauge compatibility.
Verdict: This disconnect switch is a sensible choice for DIYers and homeowners installing off-grid setups, residential rooftop arrays, or solar water pumps. If your system operates within 1000V and 30A, it provides essential protection and convenient isolation in a single weatherproof enclosure.
Specifications
- Voltage Rating: 1000V
- Current Rating: 30A
- Poles: 2 Poles (2P)
- Waterproof Rating: IP65
- Internal Rail: 35mm guide rail
- Included Accessories: 4x screws, 4x terminals, 2x solar connectors, 2x spanner wrenches
Who Should Buy It
A great fit if you:
- Need an outdoor DC isolation switch for a residential rooftop or off-grid solar system
- Run photovoltaic water pumps, solar street lighting, or agricultural irrigation
- Want combined overload, overvoltage, and lightning protection in one housing
- Require a waterproof IP65 box with a transparent viewing window
Consider something else if you:
- Operate a high-capacity solar array exceeding 30 amps or 1000 volts
- Need a switch configuration with more than two poles
FAQ
Where should this switch be installed in a solar setup?
It is designed to be installed on the DC line between the solar panels and the inverter.
What electrical protections does this circuit breaker offer?
It provides overvoltage protection, overload protection, and lightning protection for DC photovoltaic systems.
Is this switch suitable for outdoor mounting?
Yes. It features an IP65 protection rating and a built-in waterproof silicone sealing ring for outdoor use.
What hardware comes in the package?
The box includes the 30A 1000V 2P DC breaker switch, 4 screws, 4 terminals, 2 solar connectors, and 2 spanner wrenches.
