DTGN 18 Inch Pocket Door Slide Pocket Door Hardware Kit- 2 Set-

The DTGN 18 Inch Pocket Door Hardware Kit provides the components needed to mount cabinet doors that slide out of sight into a concealed pocket. Designed for cabinetry in closets, pantries, laundry rooms, bathrooms, and modern offices, this two-set package helps reclaim space that standard swinging doors typically block.

Each track is crafted from thickened cold-rolled steel treated with an electroplated finish to defend against rust, corrosion, and everyday friction. The sliding mechanism relies on a U-shaped track equipped with precision ball bearings and high-density solid steel balls. This setup provides fluid, quiet travel while an integrated multi-point anti-collision system softens impact and reduces operational noise. Multiple pre-drilled screw holes distributed across the track help maintain structural stability once mounted.

Configuration is flexible depending on your cabinet design. You can set up a single door using one track with either a top-mount or side-mount orientation. For double-door layouts using both sets, the hardware supports side mounting. The hardware accommodates door panels between 18mm and 20mm (0.7 to 0.79 inches) thick and can handle weight loads up to 14kg (30.9 lbs) per door.

Installation does require precise woodworking preparation. The process involves drilling a 40mm cup hole 8mm from the door edge, making an 80mm-wide by 18mm-thick connecting plate to fit the track square plate, and drilling 8mm holes for the guide wheel base. Buyers should ensure their door panels fall strictly within the 30.9-pound limit and specified thickness range before starting.

Verdict: This hardware kit is an effective, durable choice for woodworkers and DIYers looking to install smooth, space-saving pocket doors on custom cabinets. As long as your door dimensions match the required specifications and you are comfortable with the multi-step prep work, it delivers solid performance and quiet operation.

• Brand: DTGN
• Material: Thickened cold-rolled steel with electroplated finish

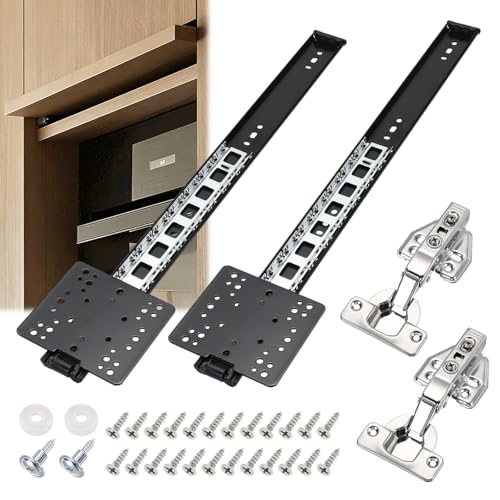

• Package Content: 2 sets (4 tracks, 4 hinges, 48 self-tapping screws, 4 guide wheels, 4 guide wheel fixing screws)
• Track Length: 450mm / 17.7 inches
• Track Width: 88mm / 3.5 inches
• Hinge Size: 130mm x 66mm / 5.1 x 2.6 inches
• Load Capacity: 14kg / 30.9 lbs
• Panel Thickness Compatibility: 18-20mm / 0.7-0.79 inches
• Required Cup Hole Diameter: 40mm (8mm from edge)

A great fit if you:

• Need to install concealed sliding doors in tight kitchens, pantries, or bathrooms.
• Have cabinet door panels that weigh under 30.9 pounds with a thickness of 18-20mm.
• Have the woodworking tools to drill 40mm cup holes and craft a connecting plate.
• Want durable steel hardware that includes hinges, tracks, and fasteners.

Consider something else if you:

• Need hardware for full-size interior passage doors rather than cabinets.
• Have heavy door panels exceeding 14kg (30.9 lbs) or panels outside the 18-20mm thickness range.
• Prefer a drop-in installation that requires no drilling or custom plate fabrication.

What is included in the package?
You get two full hardware sets, which include a total of 4 tracks, 4 hinges, 48 self-tapping screws, 4 guide wheels, and 4 guide wheel fixing screws.

What size and weight door panels can this hardware support?
The hardware supports cabinet door panels with a thickness between 18mm and 20mm (0.7 to 0.79 inches) and a maximum weight of 14kg (30.9 lbs).

Can I install this on both single and double cabinet doors?
Yes. Single door setups support both top-mount and side-mount installations using one track, while double door setups use two tracks and support side mounting only.

What preparation is needed before mounting the door?
You will need to drill a 40mm-diameter cup hole 8mm from the door edge, drill an 8mm hole for the guide wheel base, and fabricate an 80mm-wide by 18mm-thick connecting plate to attach to the track.
