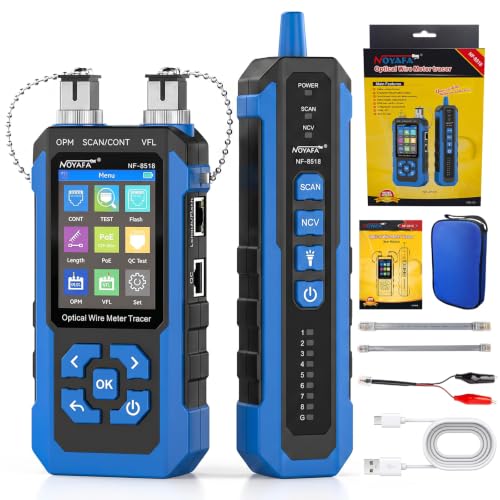

NOYAFA Network Cable Tester with Optical Power Meter & VFL
Disclosure: We may earn a commission when you buy through links on this page, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Learn more
Highlights
- 【ALL-IN-ONE NETWORK TESTING TOOL FOR IT PROFESSIONALS and HOME NETWORK DIY】 Seamlessly combining 9 professional functions, this toner probe kit and network cable tester is equipped with digital CONT/SCAN test, precise cable length tracking, POE check, port flash, VFL, QC test, optical power meter (OPM), NCV detection, and automatic shutdown. It is perfectly suited for various engineering cabling projects, network troubleshooting, network equipment maintenance and testing scenarios. Its precise cable scanning and fault localization capabilities help you effortlessly pinpoint the root cause of issues.
- 【7 WAVELENGTHS OPTICAL POWER METER】NOYAFA network cable tester can measure 7 standard wavelengths, 850/1300/1310/1490/1550/1625/1650, power detecting range(dBm): -70 ~ +10. Its power detection range spans from -70 dBm to +10 dBm, supporting FC/SC/ST connectors. It enables precise fiber optic power measurement, helping users efficiently assess fiber signal strength and ensure healthy fiber link operation. It effortlessly detects attenuation issues within fibers, thereby safeguarding fiber network stability.
- 【PoE Testing &60V PROTECTED SAFE and 350M Cable Length Test: PoE testing can check cable mapping polarity and voltage of PoE network switches, withstand 60VDC. Automatically detects and switches between 10M/100M/1000M modes, Includes cable tracking, short circuit test, interruption of circuit test and etc The RJ45 cable tester can quickly measure the length of the cable with a range of 350m. Not only network cables, but also phone lines and BNC cables.
- 【High Efficiency Visual Fault Locator】Easy identification of fiber breakpoints, poor connections, bending or cracking. Excellent for finding the right fiber to splice or quickly finding a break. Emmiting Energy: standard wavelenth: 650nm. Fast flashing, slow flashing, high precison.The device's wire-tracing probe utilizes a digital signal mode, enabling precise wire tracing even in complex patch panel environments. It instantly detects wire-map connectivity, short circuits, open circuits, and miswires for both UTP and STP shielded cables
- 【Long Battery Life and Non-Contact Voltage】RJ45 network cable tester allows you to set the backlight timeout and automatic shutdown time. It has a built-in 1500mAh 3.7V lithium battery, providing up to 10 hours of battery life, and supports Type-C charging for added convenience.this tester also features non-contact voltage testing, allowing for non-contact voltage testing of household wiring. It is an essential tool for cable tracing, line location, and fault detection.
- 【LED COLOR DISPLAY & TYPE-C RECHARGEABLE KIT】 Say goodbye to low-end monochromatic screens and constant 9V battery swaps. This premium tester features a vibrant color display and an integrated LED flashlight for dark server racks or attics, all running on a rechargeable polymer lithium battery via a universal Type-C cable. Complete kit includes: Color Transmitter, Tracking Receiver probe, RJ45 Adapter Jumper, RJ11 Adapter Jumper, Type-C Cable, Zippered Carrying Case, and User Manual.
Why You'll Love It
- Tests both copper wiring and fiber optic lines using a single handheld kit
- Measures fiber signal power across 7 standard wavelengths with wide connector compatibility
- Locates fiber breaks and bends with a dedicated 650nm visual fault locator
- Traces network lines and measures cable runs up to 350 meters long
- Identifies PoE switch voltage and polarity with 60V DC input protection
- Recharges via Type-C with up to 10 hours of runtime per charge
Pros
- +Combined copper and fiber testing in one unit
- +Built-in 650nm visual fault locator
- +Measures cable length up to 350m
- +Rechargeable battery with Type-C port
- +Color display with integrated LED flashlight
Cons
- -Cable length measurement capped at 350 meters
- -Power meter range limited to -70 to +10 dBm
- -More functions than needed for basic patch cables
Detailed Review
The NOYAFA Network Cable Tester integrates copper verification and fiber optic troubleshooting into a single portable kit. It serves network technicians, IT professionals, and home network builders who manage both standard Ethernet drops and optical links. Instead of carrying separate tools for continuity, length tracking, and optical inspection, this device brings nine common diagnostic functions together in one package.
For copper lines, the kit traces digital signals across RJ45 patch panels, phone lines, and BNC connections. It tests for open circuits, shorts, and miswires on both shielded and unshielded cables, and it measures total run length up to 350 meters. When dealing with powered infrastructure, the device checks Power over Ethernet polarity and voltage on switches up to 60VDC, automatically detecting link speeds across 10M, 100M, and 1000M configurations.
Fiber testing capabilities center around a built-in optical power meter and visual fault locator. The meter reads seven standard wavelengths from 850nm to 1650nm across a -70 to +10 dBm detection range, supporting FC, SC, and ST connector types. Meanwhile, the 650nm visual fault locator emits continuous or flashing red light to pinpoint fiber breaks, tight bends, or cracked splices in patch enclosures.
In terms of practical limits, the power meter range stops at +10 dBm, which may not suit ultra high-power optical transmitters, and the cable length tracking stops at 350 meters. However, the hardware is well equipped for daily service calls, featuring a color screen, non-contact voltage detection for household lines, an LED work light, and a 1500mAh lithium battery that delivers up to 10 hours of use per charge.
Verdict: This versatile diagnostic kit is ideal for technicians who manage mixed copper and fiber setups and want to streamline their tool bag. It offers comprehensive testing from basic wire mapping to fiber signal checks without requiring constant battery swaps.
Specifications
- Supported Wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
- Optical Power Range: -70 dBm to +10 dBm
- Fiber Connectors Supported: FC, SC, ST
- VFL Wavelength: 650 nm
- Cable Length Test Range: Up to 350 m
- Voltage Protection: Up to 60VDC
- Speed Detection: 10M / 100M / 1000M
- Battery: 1500mAh 3.7V lithium polymer (up to 10 hours runtime)
- Charging Port: Type-C
Who Should Buy It
A great fit if you:
- Install or troubleshoot combined copper and fiber optic network infrastructure
- Need to verify PoE switch voltage and pin polarity safely
- Want to measure cable lengths up to 350 meters on RJ45, RJ11, or BNC lines
- Prefer a rechargeable color display unit over standard 9V battery testers
Consider something else if you:
- Only need to check basic continuity on occasional patch cables
- Require optical power measurements above +10 dBm
FAQ
What types of fiber connectors are compatible with this tester?
The optical power meter supports FC, SC, and ST connector types across seven standard wavelengths.
What accessories come included in the box?
The package includes the color transmitter, tracking receiver probe, RJ45 adapter jumper, RJ11 adapter jumper, Type-C charging cable, zippered carrying case, and user manual.
Can this device check live PoE network ports?
Yes, it checks cable mapping polarity and voltage on PoE switches with protection against up to 60VDC.
How long does the battery last on a full charge?
The built-in 1500mAh 3.7V lithium battery provides up to 10 hours of operation and charges using a Type-C cable.
Product Details
| Brand | NOYAFA |
| ASIN | B0GYF7V3X5 |
