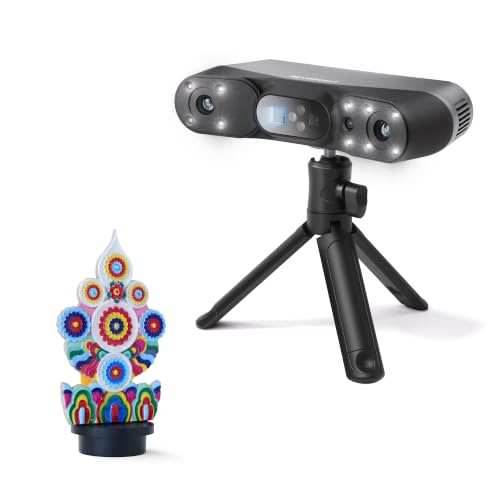

Revopoint POP 4 3D Scanner, AI Segmentation, for 3D Printing, Standard

The Revopoint POP 4 3D Scanner is an optical digitizer designed for reverse engineering, 3D printing, and precision modeling. It captures fine surface geometry on objects ranging from small 10x10x10 mm parts up to 2x2x2 m assemblies. By combining near-infrared structured light with blue laser scanning, it gives makers, designers, and engineers a capable tool for capturing real-world shapes.

Hardware flexibility stands out through five dedicated scanning modes. The 30-cross blue laser lines scan dark surfaces and shiny metals without requiring scanning sprays, while a single-line laser mode captures deep holes and narrow grooves. When tracking broader shapes, near-infrared modes deliver rapid coverage, reaching up to 105 frames per second with NVIDIA GPU acceleration or acquiring up to 5,000,000 points per second in full-field structured light mode.

Workflow features help speed up digitizing. The system uses AI object segmentation on Windows systems to automatically track the subject and remove unwanted background data in one click. For wireless operation, built-in Wi-Fi 6.0 lets you stream live scan visuals from your PC directly to a mobile device for real-time tracking and blind-spot checking. The scanner also supports 3D Gaussian Splatting for photorealistic color export using imported photos.

A few features require optional add-ons or specific operating systems. AI object segmentation is limited to Windows PCs, and specialized measurement or design software programs like Revo Measure and Revo Design require separate purchases on Windows. Additionally, scanning in bright outdoor sunlight up to 100,000 lux with the multi-line laser requires an optional outdoor filter, and untethered field use requires a separately sold battery grip.

Verdict: The Revopoint POP 4 is a versatile scanning solution for technicians, 3D print enthusiasts, and designers who need reliable precision on difficult surfaces. If you work on Windows and need high accuracy across diverse object sizes, it provides a comprehensive modeling toolkit.

• Single-Frame Accuracy: Up to 0.03 mm
• Volumetric Accuracy: 0.03 mm + 0.05 mm x L(m)
• Full-Field Structured Light Accuracy: 0.08 mm
• VCSEL Mode Accuracy: 0.10 mm @ 300-500 mm; 0.20 mm @ 500-800 mm
• Maximum Frame Rate: Up to 105 fps (Multi-line Laser with NVIDIA GPU acceleration)
• Point Acquisition Rate: Up to 5,000,000 points/s
• Scan Volume Range: 10x10x10 mm to 2x2x2 m
• Wireless Connectivity: Wi-Fi 6.0
• Scanning Modes: 5 (Full-Field HD, Hybrid HD, VCSEL Rapid, 30-Cross Laser Lines, Single-Line Deep Hole)
• Included Software: Revo Scan 6

A great fit if you:

• Need to scan dark, black, or highly reflective metal parts without using scanning spray.
• Work in 3D printing, reverse engineering, or precision modeling requiring up to 0.03 mm accuracy.
• Capture objects across varied scales, from small 10 mm items up to 2-meter parts.
• Want wireless cross-screen monitoring on a mobile device over Wi-Fi 6.0.

Consider something else if you:

• Require AI segmentation tools on macOS or other non-Windows operating systems.
• Expect included measurement software, battery grips, or outdoor filters in the base package.

Can the scanner capture dark or reflective items?
Yes, the 30-cross blue laser lines mode handles dark, black, and highly reflective metal objects using marker tracking without requiring scanning spray.

What is the scanning size range?
It supports a minimum scan volume of 10x10x10 mm and a maximum scan volume of 2x2x2 m.

Does the AI object segmentation work on all computers?
No, the AI object segmentation feature is supported only on Windows systems.

Can I use this scanner outdoors?
Yes. The multi-line laser works up to 50,000 lux (or up to 100,000 lux with a separately sold outdoor filter), and the VCSEL mode operates in ambient light up to 100,000 lux.
