Revopoint POP 4 3D Scanner, AI Segmentation, for 3D Printing, Premium
Disclosure: We may earn a commission when you buy through links on this page, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Learn more
Highlights
- 【Industrial-Grade Accuracy】Achieve single-frame accuracy up to 0.03 mm and volumetric accuracy of 0.03 mm + 0.05 mm x L(m), faithfully reproducing the finest surface details and complex geometries with exceptional consistency. Full-Field Structured Light accuracy reaches 0.08 mm; VCSEL mode delivers 0.10 mm @ 300-500 mm and 0.20 mm @ 500-800 mm. Engineered to meet the demanding requirements of 3D printing, reverse engineering, and precision modeling applications.
- 【Ultra-Fast Scanning & Robust Frame Rate】Multi-line Laser mode delivers up to 105 fps with NVIDIA GPU acceleration. Full-Field Structured Light mode achieves up to 5,000,000 points/s. The high frame rate ensures a smooth, uninterrupted scanning experience, especially suited for rapidly capturing large objects and complex scenes, significantly boosting overall workflow efficiency.
- 【AI-Powered & Photo-Grade Retopology】 AI object segmentation (Windows only) identifies your target in one click, tracks it throughout the scan, and auto-filters background noise — delivering clean data and streamlining post-processing. The patented 3D Gaussian Splatting converts point cloud and RGB data into true-to-life 1:1 photorealistic models; import photos from your phone or camera to apply real textures, then export in splat format for gaming, animation, and VR.
- 【All-Weather Outdoor Scanning】Multi-line Laser mode operates reliably up to 50,000 lux; with an outdoor filter attached, scanning remains stable in lighting conditions of up to 100,000 lux; VCSEL mode operates reliably in up to 100,000 lux ambient light. Designed to overcome lighting challenges, it provides consistent all-weather performance for construction sites, archaeological digs, and industrial fieldwork.
- 【5 Scanning Modes】NIR band supports Full-Field HD Scanning (markerless, fine structured light), Hybrid HD Scanning (dual projectors, fast high-quality modeling), and VCSEL Rapid Scanning (high-density pattern, fast markerless capture). Blue light band supports 30-Cross Laser Lines Scanning (handles high-reflectivity metals & dark objects) and Single-Line Deep Hole Scanning (captures from deep holes & narrow grooves). Five modes for comprehensive indoor and outdoor coverage.
- 【Scans Large & Small, Dark & High-Reflectivity Objects】Minimum scan volume 10x10x10 mm; maximum 2x2x2 m -- from small precision parts to large industrial components. The 30-Cross Blue Laser Lines mode in marker-tracking seamlessly handles highly reflective metal surfaces and dark/black objects, delivering accurate, high-quality data without scanning spray.
- 【Wireless Scanning & Cross-Screen Interaction】Built-in WiFi 6.0 enable high-speed connections to PCs and smartphones. The included 5500mAh battery grip delivers up to 4 hours of continuous outdoor scanning with a lightweight ergonomic design. Stream live PC scan visuals to your phone or tablet via Wi-Fi for real-time cross-screen preview, mobile control, and instant blind-spot detection.
- 【Professional Software】Equipped with the professional Revo Scan 6 post-processing software, it supports seamless data import into Revo Measure (professional 3D measurement) and Revo Design (reverse engineering), delivering a complete one-stop solution for scanning, measurement, and modeling. Note: Revo Design and Revo Measure are paid software sold separately and supports Windows only.
Why You'll Love It
- High accuracy down to 0.03 mm captures fine surface details for 3D printing and modeling
- Blue laser lines scan dark and reflective metal surfaces without requiring scanning spray
- Five distinct scanning modes handle everything from tiny parts to deep grooves and large objects
- Outdoor-ready optical design scans effectively under bright ambient light up to 100,000 lux
- Wireless Wi-Fi 6 connectivity and a 5500mAh battery grip allow four hours of cord-free scanning
- AI object segmentation automatically tracks targets and removes background noise during setup
Pros
- +High 0.03 mm single-frame accuracy
- +Scans shiny and black objects without spray
- +Four hours of wireless battery operation
- +Works outdoors up to 100,000 lux
- +Five flexible scanning modes
Cons
- -AI segmentation works only on Windows
- -Revo Design and Revo Measure software cost extra
- -Requires an NVIDIA GPU for top frame rates
Detailed Review

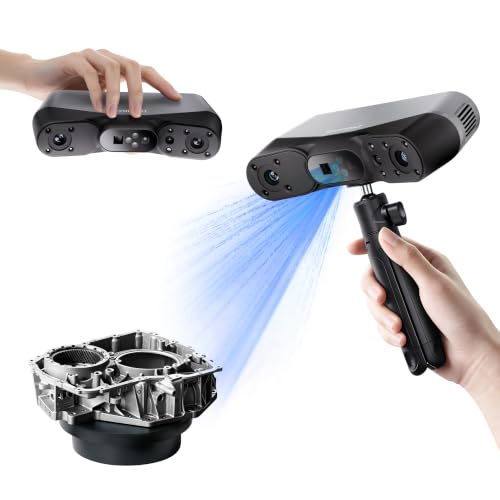

The Revopoint POP 4 3D Scanner is a versatile optical capture device designed for makers, engineers, and digital artists who need high-precision digital models. By combining near-infrared structured light, VCSEL, and blue laser scanning into a single unit, it solves the common problem of needing multiple specialized tools to scan diverse object sizes, dark tones, and reflective surfaces.
Accuracy and versatility stand out across its five distinct scanning modes. Users can achieve single-frame accuracy up to 0.03 mm, with scan volumes ranging from tiny 10x10x10 mm items up to 2x2x2 m objects. The 30-cross blue laser lines mode captures dark and shiny metals without needing messy developer sprays, while single-line laser mode reads deep holes and narrow grooves. For faster captures, full-field structured light delivers up to 5,000,000 points per second, and the multi-line laser mode reaches up to 105 fps when paired with NVIDIA GPU acceleration.
Mobility and software integration make fieldwork practical. The scanner features built-in Wi-Fi 6 and includes a 5500mAh battery grip that provides up to 4 hours of continuous outdoor use. You can stream real-time scans directly from your PC to a phone or tablet to spot blind spots immediately. When scanning in sunlight, the system works in ambient lighting up to 100,000 lux with its outdoor filter. Built-in AI object segmentation isolates your target with one click, while 3D Gaussian Splatting supports photorealistic texture conversion for VR and animation.
There are a few platform limitations to consider before buying. The one-click AI segmentation feature and advanced add-on programs like Revo Measure and Revo Design are strictly limited to Windows systems. Additionally, while basic post-processing is included via Revo Scan 6, dedicated reverse engineering and measurement suites require separate purchases.
Verdict: The Revopoint POP 4 is an excellent choice for 3D printing enthusiasts, reverse engineers, and field researchers who need portable, high-detail scanning across difficult dark or metallic materials. Buyers relying on macOS or needing full measurement software included out of the box should weigh the Windows-specific tools and extra software costs.
Specifications
- Single-Frame Accuracy: Up to 0.03 mm
- Volumetric Accuracy: 0.03 mm + 0.05 mm x L(m)
- Scan Volume Range: 10x10x10 mm to 2x2x2 m
- Structured Light Acquisition Rate: Up to 5,000,000 points/s
- Multi-Line Laser Frame Rate: Up to 105 fps (with NVIDIA GPU acceleration)
- Outdoor Light Tolerance: Up to 100,000 lux (with outdoor filter / VCSEL)
- Battery Grip Capacity: 5500mAh (up to 4 hours runtime)
- Wireless Connectivity: Wi-Fi 6.0
Who Should Buy It
A great fit if you:
- Need to scan dark, black, or reflective metal parts without using dulling sprays.
- Require precise scans of varying sizes, from 10 mm parts to 2-meter objects.
- Conduct field scans on archaeological sites or outdoor work areas under bright sunlight.
- Want untethered handheld scanning using a battery grip and Wi-Fi streaming.
Consider something else if you:
- Rely on non-Windows computers for AI segmentation and measurement tools.
- Expect advanced reverse engineering software to be included without extra purchases.
FAQ
Can this scanner capture dark or shiny metal surfaces?
Yes. The 30-cross blue laser lines mode is built specifically to capture dark objects and high-reflectivity metal surfaces without using scanning spray.
How long does the battery last during portable scanning?
The included 5500mAh ergonomic battery grip provides up to 4 hours of continuous outdoor scanning over Wi-Fi 6.0.
What software comes with the scanner?
The package includes Revo Scan 6 post-processing software. Specialized programs such as Revo Measure and Revo Design are Windows-only and sold separately.
Does the AI segmentation feature work on all operating systems?
No, the one-click AI target identification and background filtering feature is compatible only with Windows.
Product Details
| Brand | Revopoint3DScanner |
| ASIN | B0GY33WKNF |
