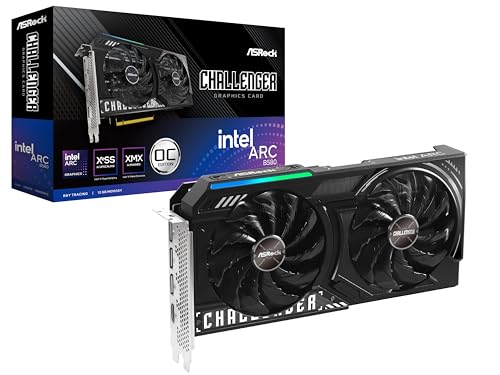

ASRock Intel Arc B580 Challenger 12GB OC Graphics Card, 2740 MHz GPU

The ASRock Intel Arc B580 Challenger 12GB OC Graphics Card is built for PC gamers and creators looking for modern display features and solid 1080p or 1440p rendering capability. Powered by Intel Xe2-HPG architecture, it delivers a high-performance engine clock of 2740 MHz alongside a 19 Gbps memory speed to keep gameplay responsive during fast-paced sessions.

Memory capacity is a standout feature, offering 12GB of GDDR6 on a 192-bit bus. This gives creators and gamers ample bandwidth for texture-heavy modern titles and creative software. For enhanced frame rates and AI acceleration, the card includes 160 XMX engines and supports XeSS 2 (Xe Super Sampling 2). Display connectivity is equally modern, featuring three DisplayPort 2.1 outputs and one HDMI 2.1a port, capable of driving up to four displays, outputting at 8K resolution, and handling AV1 encoding.

ASRock equips the card with dual striped axial fans and 0dB Silent cooling, which shuts the fans down completely during low-temperature use for quiet operation. The card is reinforced with Super Alloy construction and a metal backplate with a thermal pad, improving both cooling efficiency and structural rigidity. A customizable multi-color LED indicator adds a subtle visual accent to your setup.

Before buying, you will need to ensure your existing PC hardware is compatible. The card measures 249mm in length, occupies 2 slots, requires a PCIe 4.0 interface, and demands at least a 650W power supply paired with a single 8-pin power connector.

Verdict: The ASRock Intel Arc B580 Challenger is an excellent option for PC builders wanting 12GB of fast memory, 8K multi-monitor connectivity, and silent low-load cooling. It is ideal for anyone aiming for responsive 1080p or 1440p gaming and modern content creation without an overly complex power setup.

• GPU Architecture: Intel Xe2-HPG
• Engine Clock: 2740 MHz
• Memory: 12GB GDDR6 (19 Gbps, 192-bit bus)
• Interface: PCIe 4.0
• Card Dimensions: 2-slot width, 249mm length
• Power Requirements: 650W PSU, 1x 8-pin connector
• Display Outputs: 3x DisplayPort 2.1, 1x HDMI 2.1a
• Cooling: Dual fans with 0dB Silent technology and metal backplate
• AI Hardware: 160 XMX engines

A great fit if you:

• Play modern games at 1080p or 1440p resolutions and want 12GB of video memory.
• Need multiple modern display outputs, including DisplayPort 2.1, for up to four monitors or 8K displays.
• Work with media workflows that benefit from AV1 encoding and AI acceleration.
• Prefer a quiet desktop environment when performing light PC tasks.

Consider something else if you:

• Have a compact PC chassis that cannot accommodate a 249mm long, 2-slot card.
• Own a power supply rated below 650W or lack an available 8-pin power lead.

What power supply and connectors are needed for this card?
The card requires a minimum 650W power supply and one 8-pin power connector.

How many monitors can this graphics card run at once?
It supports up to four displays simultaneously using its three DisplayPort 2.1 ports and one HDMI 2.1a port, with resolutions up to 8K.

Do the cooling fans spin all the time?
No. The dual-fan system includes 0dB Silent technology, which stops the fans when temperatures are low for completely silent operation.

What are the physical dimensions of the card?
The card occupies 2 slots in your case and measures 249mm in length.
