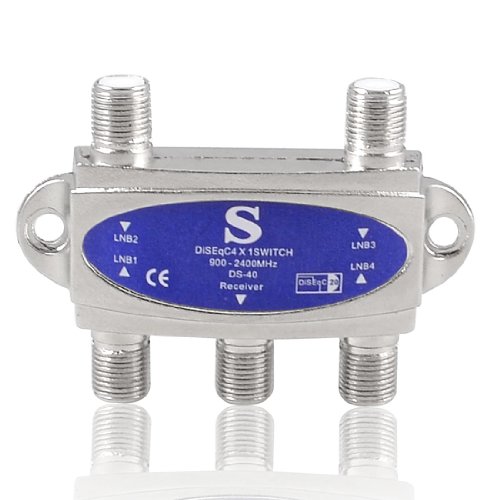

Ruilogod 900-2400MHz DiSEqC Switch FTA Satellite Receiver 4 in 1 Multi LNB

The Ruilogod DS-40 DiSEqC Satellite Switch connects multiple satellite dish feeds into a single line for your free-to-air receiver. It allows enthusiasts managing multi-LNB configurations to route up to four separate satellite inputs without needing multiple cables running indoors.

Operating across a frequency range of 900 to 2400MHz, this unit handles standard satellite intermediate frequencies. Signal integrity is supported by an insertion loss of 2dB or less, reflection loss of 8dB or more, and an isolation rating of at least 20dB. It runs on DC 13-18V working power at 30mA, with a maximum current handling capacity of 500mA.

In terms of build, the switch uses an external metal housing finished in a silver tone, measuring 5.3 x 4.8 x 1.4cm (2.1 x 1.9 x 0.55 inches) and weighing 36g. For physical installation, it features 4.5mm mounting holes spaced 60mm apart. However, the package includes only the bare switch, so you will need to provide your own mounting screws, connectors, and coaxial cables. The specifications also do not state an outdoor weather rating or waterproofing cover.

Verdict: The Ruilogod DS-40 is a practical choice for satellite hobbyists needing a compact 4-in-1 switch for 900-2400MHz FTA setups. If you already have your own mounting hardware and cabling ready, it offers solid technical specs in a small metal frame.

• Model: DS-40
• Frequency Range: 900-2400MHz
• Working Power: DC 13-18V / 30mA
• Maximum Current: 500mA
• Insertion Loss: < =2dB
• Reflection Loss: > =8dB
• Isolation: > =20dB
• Dimensions: 5.3 x 4.8 x 1.4cm / 2.1 x 1.9 x 0.55 inches (L*W*H)
• Mount Hole Diameter: 4.5mm / 0.2 inches
• Mount Hole Center Distance: 60mm / 2.4 inches
• External Material: Metal
• Net Weight: 36g
• Package Content: 1 x DiSEqC Satellite Switch

A great fit if you:

• Need to switch between up to 4 LNB feeds on a single FTA receiver
• Require a switch covering intermediate frequencies between 900 and 2400MHz
• Have existing screws and coaxial cables to complete the setup

Consider something else if you:

• Need an all-in-one kit that includes mounting screws and connecting cables
• Require a switch with explicit outdoor weatherproofing included in the box

What is the frequency range of this switch?
The switch operates within a frequency range of 900 to 2400MHz.

What are the power requirements for this unit?
It operates on DC 13-18V at 30mA, with a maximum current capacity of 500mA.

What comes inside the package?
The package contains one DiSEqC satellite switch.
