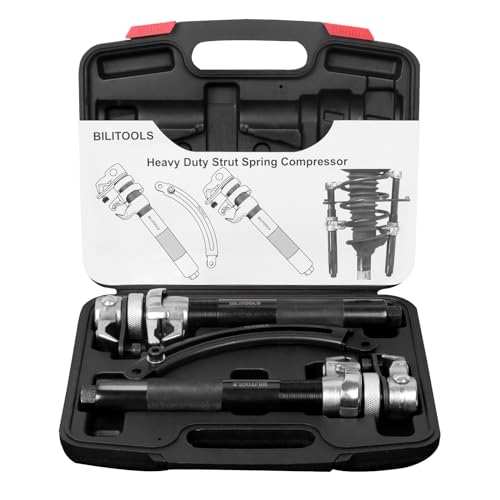

BILITOOLS 2-Piece Coil Spring Compressor Tool, Max Load.2645LB
Disclosure: We may earn a commission when you buy through links on this page, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Learn more
Highlights
- Double-Retention Anti-Drop System: This strut spring compressor kit features dual-protection safety with interlocking hook jaws and a secure locking mechanism. Its adjustable safeguard brace prevents accidental spring release under load and ensures parallel operation of removable tool components at all times
- Premium Material: Our coil spring compressor tool is constructed from 45# carbon steel. The rugged frame minimizes flexing, bending, and warping even under high tension, each pair of the spring compressor tool can withstand a load of up to 2645 lbs (1200 kg)
- Wide Application: An ideal solution for various vehicles, including trucks under 3 tons and large sedans. Avoid strut compressors with flimsy hooks that cause slippage or safety hazards. Compatible with springs 0–0.8 inches (0–20mm) in diameter. Verify spring size before use
- Product Information: This heavy-duty spring compressor tool has a wide jaw capacity of 2.7-10.6 inches (70-270 mm) and an adjustable holder suitable for coil diameters of 8.6-12.2 inches (220-310 mm). Fits straight springs only; tapered springs not compatible
- Easy to Use: The screw compressor securely grips springs by rotating the easy-to-use hex nut. Use a 19mm hex socket or wrench. Always apply grease to threads before use. (Ensure even pressure on both sides — uneven force may cause tool detachment.)
Why You'll Love It
- Supports heavy loads up to 2645 lbs for working on large sedans and trucks
- Dual-protection locking mechanism and safeguard brace help keep components parallel and prevent slippage
- Sturdy 45# carbon steel frame minimizes bending and warping under high tension
- Wide jaw opening accommodates straight springs from 2.7 to 10.6 inches
- Operates smoothly using a standard 19mm hex socket or hand wrench
Pros
- +High 2645 lb load capacity
- +Built with sturdy 45# carbon steel
- +Double-retention anti-drop safety brace
- +Compatible with standard 19mm hex tools
- +Handles springs up to 0.8 inches thick
Cons
- -Not compatible with tapered springs
- -Requires manual greasing before every use
- -Must maintain strictly even pressure on both sides
Detailed Review
The BILITOOLS 2-Piece Coil Spring Compressor Tool is designed to safely compress suspension springs during strut maintenance and repair jobs. Handling high-tension springs can be hazardous, and this tool is built for home mechanics and technicians working on large sedans and trucks rated under 3 tons. Its heavy-duty construction provides the strength required to compress stiff coils securely.
Safety is a major priority in this design, which incorporates a double-retention anti-drop system. Interlocking hook jaws combine with an adjustable safeguard brace to keep components aligned in parallel during use, reducing the risk of accidental spring release. The frame is forged from 45# carbon steel to minimize flexing, bending, or warping while handling loads up to 2645 lbs (1200 kg).
In terms of sizing, the tool provides a jaw capacity spanning 2.7 to 10.6 inches (70 to 270 mm) and an adjustable holder that accommodates coil outer diameters between 8.6 and 12.2 inches (220 to 310 mm). It works on wire spring diameters ranging from 0 to 0.8 inches (0 to 20 mm). Operation is straightforward using a standard 19mm hex socket or wrench to turn the drive nut.
There are a few key limitations to keep in mind before purchasing. This tool is designed exclusively for straight coil springs and will not work on tapered springs. It also requires careful user maintenance and technique: threads must be greased before operation, and you must alternate sides to apply even pressure, as uneven force can cause the tool to detach.
Verdict: The BILITOOLS 2-Piece Coil Spring Compressor is a solid, reliable choice for DIY mechanics and professionals servicing straight springs on passenger cars and light trucks. If you need a high-capacity tool with built-in safety braces for standard straight-coil struts, this set delivers dependable performance.
Specifications
- Piece Count: 2 pieces
- Maximum Load Capacity: 2645 lbs (1200 kg)
- Material: 45# carbon steel
- Jaw Capacity: 2.7-10.6 inches (70-270 mm)
- Compatible Coil Diameter: 8.6-12.2 inches (220-310 mm)
- Compatible Spring Wire Diameter: 0-0.8 inches (0-20 mm)
- Drive Tool Requirement: 19mm hex socket or wrench
- Spring Compatibility: Straight springs only (tapered springs not compatible)
Who Should Buy It
A great fit if you:
- Work on suspension struts for large sedans or trucks under 3 tons.
- Need a high-capacity compressor rated for up to 2645 lbs.
- Want the extra stability of interlocking safety jaws and an adjustable brace.
- Have straight coil springs with wire thicknesses up to 0.8 inches.
Consider something else if you:
- Need to compress tapered or conical suspension springs.
- Work on vehicles larger than 3-ton trucks.
FAQ
What type of springs can this tool compress?
It is compatible with straight coil springs with a wire diameter between 0 and 0.8 inches (0-20mm) and an overall coil diameter of 8.6 to 12.2 inches. It does not fit tapered springs.
What size wrench or socket is required to operate the compressor?
You will need a standard 19mm hex socket or wrench to turn the hex nuts.
What maintenance is required before use?
You should always apply grease to the compressor threads before each use and ensure you apply equal pressure to both sides during compression to prevent detachment.
What is the maximum weight capacity of this compressor pair?
The pair can handle a combined maximum load of up to 2645 lbs (1200 kg), making it suitable for large sedans and trucks under 3 tons.
