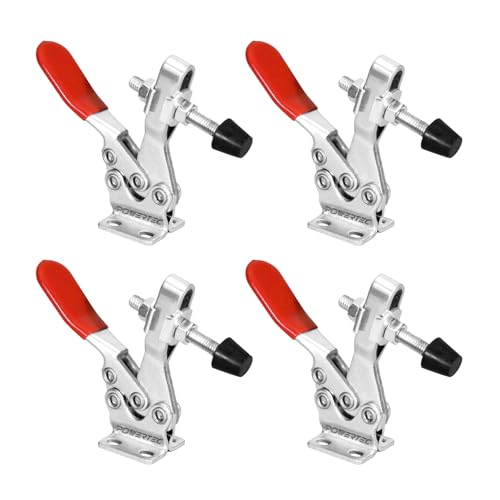

POWERTEC 4PK Toggle Clamp, 500 lbs Holding Capacity, 225D Quick Release Horizontal

The POWERTEC 4-Pack Toggle Clamp (Type-225D) is a set of horizontal quick-release hold-down tools designed to secure workpieces, jigs, and fixtures. For woodworkers and fabricators needing reliable non-slip workholding on custom benches or jig assemblies, this pack delivers substantial holding strength in a compact layout.

Each clamp is manufactured from cold-rolled carbon steel and provides a holding capacity of up to 500 pounds. The low-height horizontal mechanism stays out of the way to offer maximum overhead clearance, while the built-in pressure adapter allows you to quickly adjust the depth against your material. The clamp includes a 2-1/2-inch bolt equipped with a rubber foot to protect your stock.

Because these are dedicated horizontal hold-down clamps with a base measuring 1-3/8 by 1-1/2 inches, they require flat mounting via four 1/4 by 3/8-inch slots spaced 7/8 by 7/8 inches apart. The package includes the clamps and attached rubber-foot bolts, but the listing does not mention any included mounting screws or installation hardware.

Verdict: This four-pack is an excellent choice for anyone building custom jigs, fixtures, or workbenches that need dependable 500-pound hold-down force. It provides a straightforward, heavy-duty clamping solution with easy depth adjustment.

• Model: Type-225D
• Quantity: 4 toggle clamps
• Holding Capacity: 500 lbs
• Material: Cold-rolled carbon steel
• Base Dimensions: 1-3/8 inches x 1-1/2 inches
• Mounting Slot Size: 1/4 inch x 3/8 inch
• Mounting Slot Spacing: 7/8 inch x 7/8 inch
• Bolt Length (including rubber foot): 2-1/2 inches

A great fit if you:

• Need to secure workpieces onto custom jigs and shop fixtures
• Require horizontal hold-down force rated up to 500 lbs
• Want a low-profile clamp design that maximizes working clearance
• Need multiple matching clamps for a single workstation

Consider something else if you:

• Need vertical-action or inline push-pull clamping rather than horizontal hold-down
• Require clamps that include specific mounting screws in the package

How much weight can each clamp hold?
Each toggle clamp has a listed holding capacity of up to 500 lbs.

What are the mounting dimensions for these clamps?
The base measures 1-3/8 inches by 1-1/2 inches with 1/4 by 3/8-inch mounting slots spaced 7/8 by 7/8 inches apart.

What is the length of the included clamping bolt?
The bolt length is 2-1/2 inches, which includes the attached rubber foot.
