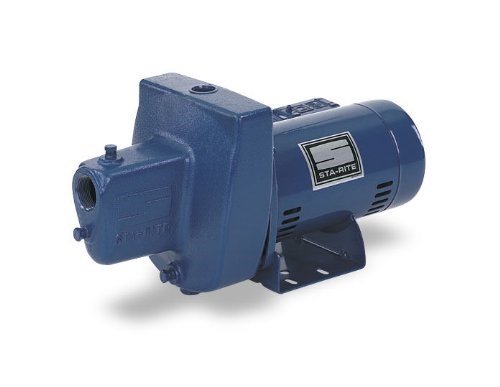

Pentair SNE-L 1 HP 115/230 Volt Shallow Well Jet Pump

The Pentair SNE-L 1 HP Shallow Well Jet Pump is built to supply water and support sprinkling systems for residential homes, farms, and cottages. Designed specifically for shallow wells, it handles water sources where the suction lift is less than 25 feet.

A versatile 1 hp motor powers the unit, capable of operating on either standard 115-volt or 230-volt wiring. It comes equipped with a factory-set 30/50 pressure switch and achieves a maximum operating pressure of 67 psi alongside 154 feet of total dynamic head, providing steady flow for daily water demands.

Constructed from close-grained cast iron, the housing is engineered for solid, stable placement. Once the internal priming chamber is filled with water, the pump becomes self-priming for ongoing operation. Routine seasonal maintenance is straightforward thanks to a dedicated drain port designed for winterizing.

Keep in mind that this model is strictly designed for shallow setups; wells requiring a suction lift of 25 feet or more will need a deep well system instead. You will also need to manually fill the priming chamber during the initial setup before the self-priming capability functions.

Verdict: The Pentair SNE-L is an ideal choice for homeowners, cottage owners, and farmers needing dependable water delivery from shallow water sources under 25 feet. Its flexible dual-voltage motor and built-in winter drain make it a practical, hardworking addition to rural or residential water systems.

• Product Type: Shallow Well Jet Pump
• Motor Power: 1 HP
• Voltage: 115 / 230 Volts
• Maximum Operating Pressure: 67 psi
• Maximum Total Dynamic Head: 154 ft
• Suction Lift Limit: Less than 25 ft
• Pressure Switch: Factory set 30/50
• Body Material: Close-grained cast iron

A great fit if you:

• Need a dedicated water supply or lawn sprinkling pump for a home, cottage, or farm
• Have a shallow well with a suction lift under 25 feet
• Want the flexibility to wire your pump for either 115V or 230V power
• Need a built-in drain port to simplify seasonal winterization

Consider something else if you:

• Have a deep well requiring 25 feet or more of suction lift
• Prefer a pump body made from alternative materials rather than cast iron

What is the maximum well depth this pump can handle?
This shallow well jet pump is designed for wells with a suction lift of less than 25 feet.

What electrical voltage does the motor require?
The 1 hp motor is dual-voltage and can be configured to operate on either 115 volts or 230 volts.

Does this pump require manual priming every time it runs?
No. Once you fill the priming chamber with water during setup, the pump is self-priming.
